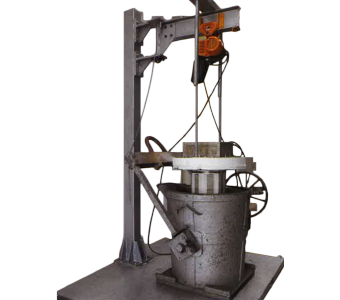

Ladle Preheating Devices

Features of Our Ladle Preheating Devices

Problems in pre-heating using conventional methods
such as gas and heavy oils

  • The upper portion of the ladle is exposed resulting
    in excessive heat loss
  • Heat radiation lowers the quality of the working
    environment
  • There exists the danger of gas leaks, etc.
  • Burners create a loud noise

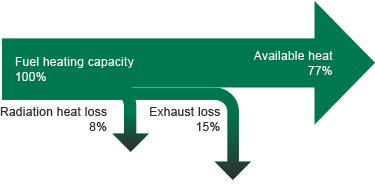

Electrical models are save more energy and are more
efficient

  • Highly efficient operation due to its electric heater
  • Reduced energy loss due to its tight seal
  • Enables accurate pre-heating in accordance with
    tapping time





Device specifications

Model Nominal rating （kg）
(Melting capacity)		 Size of heater
insertion
portion		 Heating
electric power
（kW）		 Lifting
apparatus		 800°
Heating time
DSH-A 500Fe φ400×490 200V×21kW
Single-phase		 Rotary jib-crane 1～2hr
DSH-B 1000Fe φ400×610 200V×41kW
Three-phase		 Rotary jib-crane 1～2h
DSH-C pot
1000AL		 φ400×825 200V×41kW
Three-phase		 Rotary jib-crane 1～2h





Track Record

ASAGOE INDUSTRY 500kg Ladle
TENJIN FAW TOYOTA 1000kg Ladle
